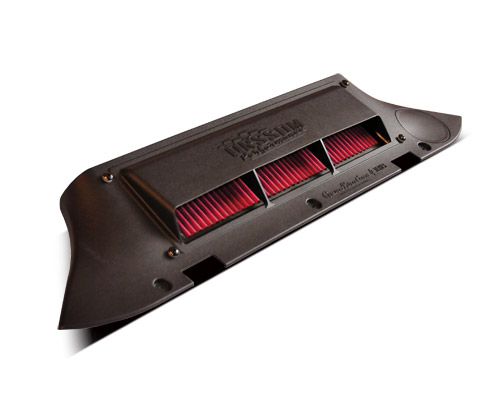

Orssom Performance MY10 – MY11 VE V6 3.6L Sidi Over The Radiator Cold Air Intake.
SUITS: VE V6 3.6L Holden Commodores MY10 & MY11 Series ( 5 / 2009 to 8 / 2011 ) fitted with the 3.6L Sidi engine.
Please note: For overseas or international sales (outside Australia) please contact us for pricing.
$595.00
Orssom Performance MY10 - MY11 VE V6 3.6L Sidi Over The Radiator Cold Air Intake.
SUITS: VE V6 3.6L Holden Commodores MY10 & MY11 Series ( 5 / 2009 to 8 / 2011 ) fitted with the 3.6L Sidi engine.
What you get in this OTR Kit:
This kit does not include the Airflow Sensor, you MUST use your original factory unit - click here to view correct sensor
A custom tune is recommended when fitting this product !!! Email us today and we will put you in contact with the nearest tuner to you!!!
Important!! Please take the time to read Important Information why we recommend a tune be carried out when installing this particular product.
Engine Management Light:
The engine management light on your dash is also known as the EML. This light comes on when one or more of your sensors are not functioning properly Or the Maps that are set in your factory computer have gone over there set parameters (Please refer to the diagram below).
Fuel Trims:
Monitored by the Oxygen sensors, Fuel trims are used to (+) add or (-) subtract fuel from the engine. Why were fuel trims created? In order for vehicle manufacturers to comply with EPA emissions regulations.
Oxygen Sensors:
The purpose for Oxygen sensors which are fitted in the Exhaust systems is to sample the Air Fuel mixture & along with many other sensors located on your motor relay messages back to the factory computer on what’s happening at various points in the engine.
The Air Flow Meter:
In your VE Commodore the Air Flow Meter, Also known as a Maf sensor, is used to calculate the amount of air flowing thru the sensor & into your engine. The engines uses rpm in conjunction with the (MAF) to calculate engine load.
Factory Computer:
The factory computer has basic maps & parameters Tuned / Programmed in by the Manufacturer. Apart from the basics, the purpose of the computer is to carry out necessary adjustments to:
The EML light coming on is not a common problem, but can arise on some vehicle from time to time which are more sensitive than others.In your case, (as shown in the graph below) the fuel trim maps have gone over the factory set ( + / - ) 15% parameter limit & triggered the engine light on the dash now to come on. The factory sensors mentioned above are all working properly & have recognised the extra air now entering the engine, but the factory computer as yet has not compensated for that extra air.
This is not a product fault, Regardless of which Brand / Company Intake product that you install, you may still experience the same outcome with the EML. This EML light coming on is not only pinned down to Cold Air Intakes. On some cars fitting a Sports Exhaust it has been known to trigger the EML light. If you do happen to experience an EML light coming on or have a combination of both Intake & Exhaust fitted to your vehicle and the light hasn’t gone away within the first 500km’s of driving, then we do strongly recommend a custom tune be carried out, as the factory parameters are stretched to there limit.
3 simple things we recommend you do:
Please note: For overseas or international sales (outside Australia) please contact us for pricing.
Yes. The Orssom OTR reuses the factory MAF (also called AFM/Air Flow Meter) and plugs straight into the OEM harness. Keeping the stock sensor position and signal quality preserves factory manners and minimises the risk of check-engine lights while delivering a measurable airflow improvement.
Drivers typically report crisper throttle response, stronger mid-range pull, and a more willing top-end compared to the stock airbox and snorkel. Results vary with vehicle condition, ambient temps, and supporting mods, but the core benefit is cooler, denser air delivered via the OTR path, an efficiency win you can feel in day-to-day driving.
Under load you’ll hear a deeper, sportier induction note that suits the SV6 character, while cruise remains civil for daily use. Many owners love the subtle WOT growl without resorting to a loud exhaust, this kit keeps your VE refined on the highway and fun when you lean on it.
No body cutting is required for VE SIDI in the MY10–MY11 range. The kit uses existing mounting points and is shaped to clear factory components, giving you a clean, reversible install that looks at home under the bonnet. Just follow the step-by-step guide and take your time with sensor orientation and clamps.
Check the filter at routine service intervals or sooner if you drive in dusty conditions. Clean and re-oil (if applicable) per the filter manufacturer’s instructions, or replace when due. A clean filter keeps restriction low, protecting your engine and preserving the gains from your Orssom Performance Cold Air Intake.
Yes. The design draws cool ambient air while shielding against splash in normal road use. As with any intake, avoid deep water crossings, liquid ingestion can damage an engine. If you’ve driven through heavy spray, a quick post-drive visual check is a smart precaution.
Absolutely. The Orssom over-the-radiator intake is a great foundation for staged upgrades. Pair it with high-flow exhaust components and, if desired, a custom tune to unlock compounding gains in response and efficiency, without compromising daily drivability.
Registered Design No: 329032
SUITS: HOLDEN VE V6 3.6L COMMODORE
Fitted with 3.6L Sidi Engine 4 / 2009 to July 2011
Note: A Custom Tune is recommended when fitting this product

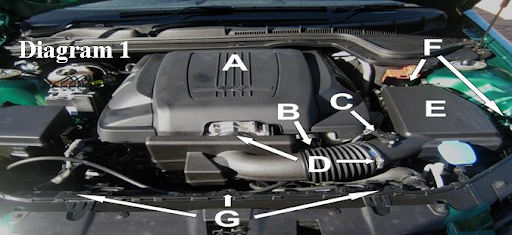

Step 1: Removal of Factory air box assembly
Note: The rear lug of the lower air box may be a bit tight to get past the battery terminal. Remove inner rubber grommet for a bit more clearance.
Step 2: Installing the Cold Air Intake
Step 3: Important
Start Vehicle & let idle for a few minutes. Car may stumble or run rough upon initial start up, this is quite normal until computer starts relearning new air values. Give it a few good rev’s & it should start to clear itself out.
Take car for drive. Some vehicles may experience within the first 500km of driving an engine light appearing on the dash. If engine light doesn’t go away within this initial self learn calibration stage a Custom Tune will be required. Vehicles that don’t experience any Engine light issues, Tuning is Optional.
Note:
Cover Intake when washing motor
Disclaimer
Conrod Motorsport Pty Ltd T/A Orssom Performance or CAI Pty Ltd (Distributor) or any of its suppliers, accept no responsibility nor will be held liable for damages caused to Vehicles / Vehicle engines / Property / Loss of life / injury or injury to others as a result of fitting this product. These products are designed for off road use only. This product may or may not pass emission testing. Please consider carefully if this product is right for you before installing.
GenAiration Series OTRCAI — Orssom Performance

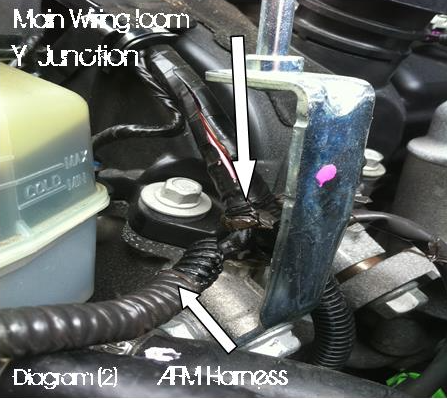

(Main Wiring loom Y Junction)

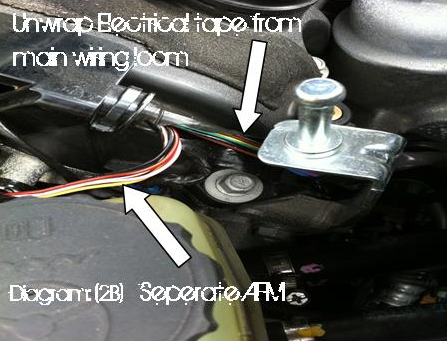

(Unwrap Electrical tape from main wiring loom)

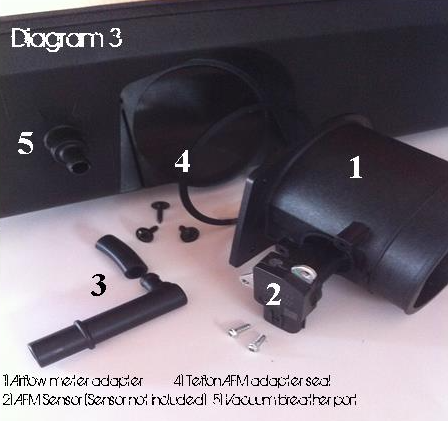

1 AFM meter adapter
2 AFM Sensor (Sensor not included)
3 [unlabelled in image]
4 Teflon AFM adapter seal
5 [unlabelled in image]
6 Vacuum breather port
500mm

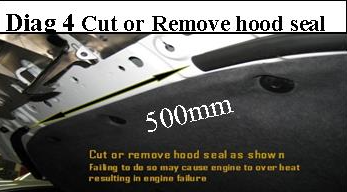

Cut or remove hood seal as shown
Failure to do so may restrict air flow into engine
